Fig. 1
From: 29th Annual Computational Neuroscience Meeting: CNS*2020

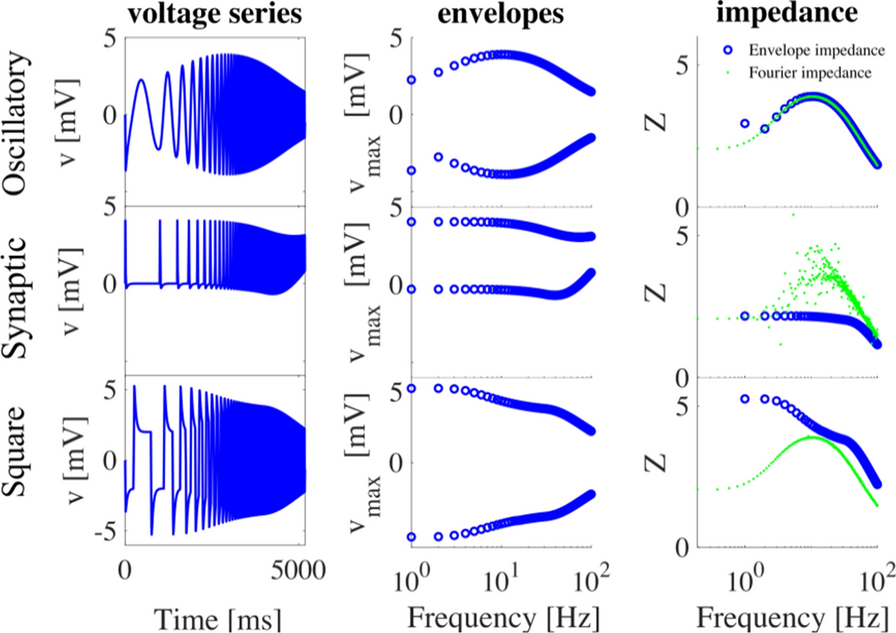

Three different inputs applied to the linear model. From top to bottom: oscillatory input, synaptic input, and pulse input. First column: voltage series. Second column: voltage-envelopes. Third column: Impedance profile computed from the Fourier transform method and from the envelope method. The figure shows how different the impedance profile can be even within the same input frequency content
